Automation Machine Division
LEAK TEST machine
· Technical overview
Aims to completely seal the test part of the target object and inject air / helium for measuring the variance and determining failure. The entire process leading to movement, closed inspection, shipping out for failure, and loading are composed of an automatic process.
· Classification of facilities
· Robot type leak test facility
· Jig change type leak test facility
· Slide & Carry type leak test facility
· Conveyor type complete engine leak test facility
· Lift & Carry type combined leak test facility
· Conveyor type leak test facility
· Universal leak test facility
· Inspection type
· Comparative differential pressure type
· Flow measurement type
· Robot type leak test facility
By using robots, the appropriate process can be composed and installed in a narrow space. If necessary, loading / NG carrying out process can be added.
- Characteristic
· No restrictions in return
· Free arrangement of process
- Target product
· All products requiring close measurement
· Jig change type leak test facility
If there are different kinds of target objects requiring inspection, a closed unit for each product can be made and arranged and automatically replaced when necessary.
- Characteristic
· Different kinds of products can be made without replacing the product type
· Air leak test is possible when failure is discovered
- Target product
· All products requiring close measurement
· Slide & Carry type leak test facility
Uses slide & carry type for fixing, closing, and carrying out inspection while moving the target object.
- Characteristic
· Air leak test is possible when failure is discovered
· Short cycle
- Target product
· All products requiring close measurement
· Conveyor type complete engine leak test facility
Can be used for inspection on confidentiality in different kinds of complete engines.
- Characteristic
· Can measure finished goods with complicated structures
· Inexpensive costs
- Target product
· All products requiring close measurement
· Lift & Carry type combined leak test facility
Can be applied for automatically carrying out a leakage test after applying pressure in the cup plug, screw plug, and ball.
- Characteristic
· Reduction of investment costs for facilities
· Effective for maintenance
- Target product
· All products requiring close measurement
· Conveyor type leak test facility
Used for fixing, closing, and carrying out inspection on the conveyor while moving the target object with the conveyor.
- Characteristic
· Simple structure
· Inexpensive costs
· Easy maintenance
- Target product
· All products requiring close measurement
· Universal leak tester facility
Semi-automatic leak test device that can be used for closed inspection on examination research products in small production amounts.
- Characteristic
· Inexpensive costs
· Simple structure
- Target product
· All products requiring close measurement

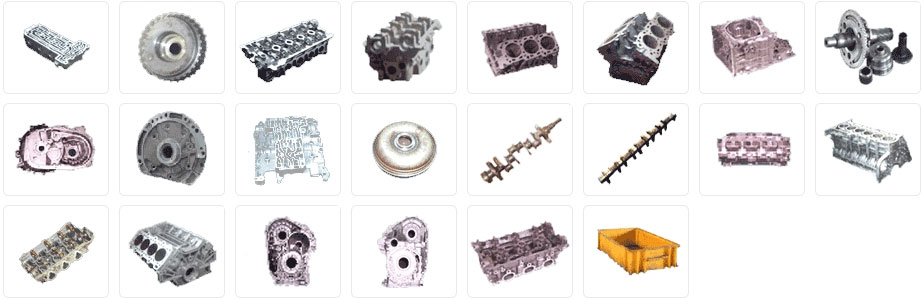

· Major target object
