Environment Division

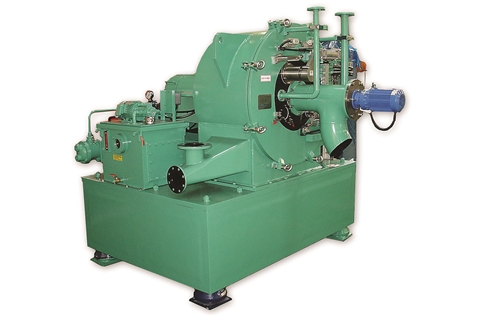

PEELER TYPE Centrifuge

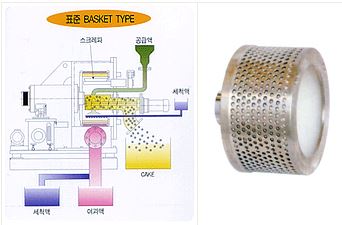

· BASKET TYPE
The excellent effect of separating solid and liquid fom the general slurry
Possibility of separation regardless of specific gravity
Fulfill customers' needs due to the adoption of various Filter.

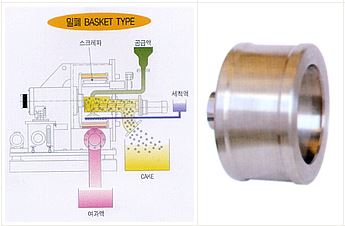

The separation of liquid from liquid using differences of specific gravities
Effective for the particles minute and has a big differences of gravities
· Structure and Specification
As a completely airtight structure, there is no loss of crude liquids and permeating of alien substance.
As the contact parts with liquids, are made of stainless steel, it can maintain this machine with good external
appearance. Especially, the control system that easily response to factory automation is adapted and the machine, is made not only compactly but also precisely.
So it supplies the best workplace for us with its durability and preventing ability noise and vibration.
Operations
Crude liquid supplySeparatingStop supplyingCake cleaning

Cake dischargeCrude liquid supply
* Automatic operation through successive cycle of crude liquid supply.

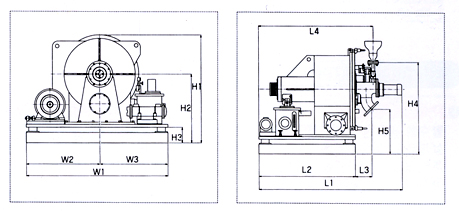

· Specifications and dimensions
MODEL BASKET
Inner diameter(mm)
Basket
volume( ℓ )
Max Speed (rpm) MAX G-Force size mm Motor (kw) weight (kg)
W1 L2 L1 H1
FDC-400 400 10 3000 2000G 1450 1000 1590 1500 15Kw 3000
FDC-600 600 40 2400 1940G 1710 1240 1840 1700 22Kw 5500
FDC-800 800 90 2000 1800G 2100 1510 1930 2100 30Kw 7500
FDC-1000 1000 180 1600 1440G 2500 1800 2300 2350 45Kw 15000
