FINE INC

Compact design achieving high-efficiency with low-cost.
Simple installation not requiring base bolt with little vibration.
Operation is simple with automatic continuous driving and uses grease for lubrication.
By directly injecting coagulant for sludge disposal, it minimizes the amount of coagulant being used.
(field of application: pharmaceutical, food, waste water, chemistry, petroleum, mining, and machinery)

Since independent operation and transmission are possible in the bowl side and screw side, bowl rotation and screw rotation can be adjusted according to the characteristics of the processing material.
Also, by collecting regenerative energy occurring in the auxiliary motor, a system for minimizing energy is adopted. (for BS2 type)

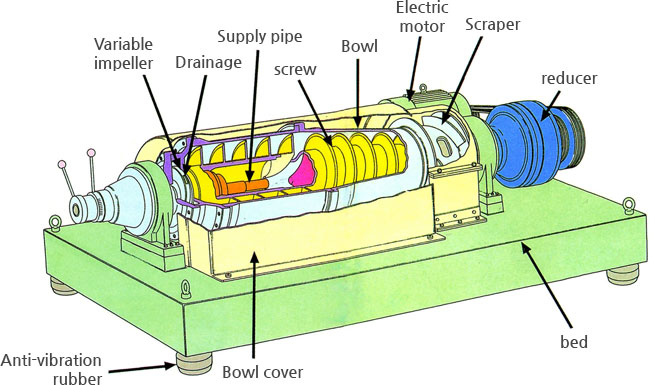

With the variable impeller type, the sinking depth and ratio between sinking and dehydration can be changed by controlling the handle.
For example, if the processing material conditions are changed, it can cope with changes by converting the impeller.
Since pressure (∼1kg/㎠) is discharged from separated liquid, the pipe for drainage water can be handled easily.

Depending on the replacement of the impeller, the ratio between sinking and dehydration can be changed for adjusting the sinking depth.
Separated liquid is overflow from the impeller and discharged to the drain hole.
Suitable when change does not often occur in the processing material and for continuous processing in large amounts.

Labyrinth device is used for sealing between the rotor and casing.
By preventing the leakage of odor or toxic substances, a clean environment is created.

Existing decanter has limited effect in cake cleansing.
Cake rinse type has 10 times higher cleansing effect compared to the existing type.
