Environment Division

Filter system

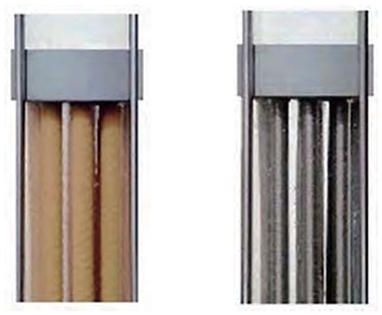

High-performance spring type filter where filter replacement is not required

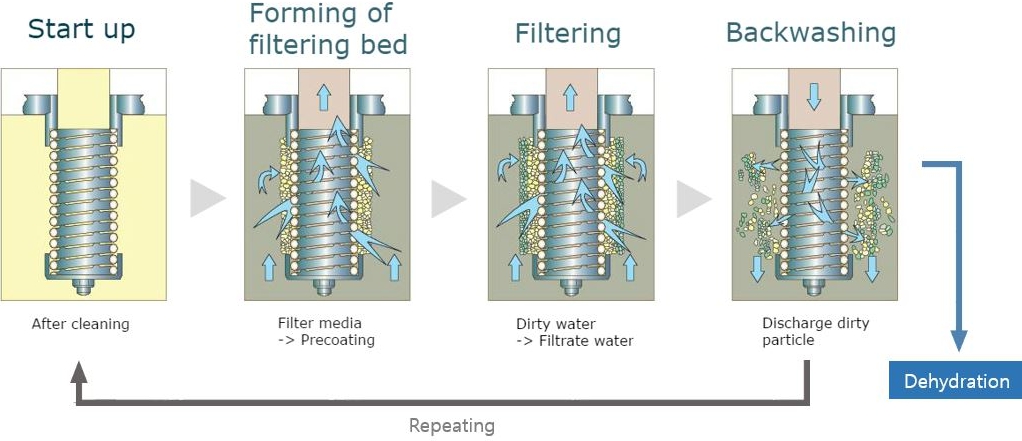

· Operation sequence

· Filtering type

· Precoating Type

Use diatomite, Cellulose, Active carbon as filtering material.
Filtering Capacity per piece : 0.5-5E /min (S15 filter)
Filtering capability : 0.5om-

· Body Feed Type

Reduce filtering resistance making new layer continuously.
Filtering capability : 0.50m-

· Strainer Type

Remove SS with filter only.
Forming of filtering layer per nature of SS in crude liquid.
Filtering capacity per piece : 0.5-10 £ /min (S15 filter)
Filtering capability : 2um ~

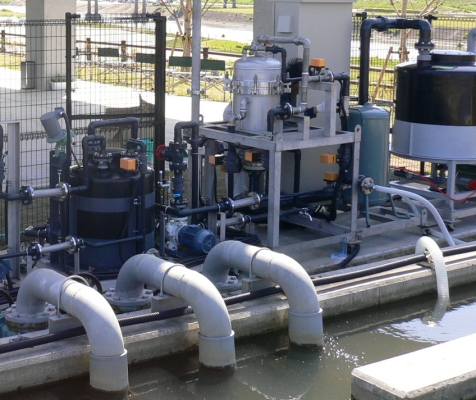

· Exterior shape and specifications

Excellent regenerative back washing.
Can cope with high temperature, high pressure, and high concentration.
Achieve precise filtering at high-speed and low-pressure.
Achieve high-performance operation with low-cost and dramatically reduce the maintenance time.

· Filter Specification Table

Size	Vessel diameter	Vessel height	Flange diameter	Nozzle size			Filter number	Flow rate	Filter number	Flow rate
Size	A	H	B	①	②	③	N(P=35)	㎥/hr	N(P=40)	㎥/hr
150A	165	1015	280	25A	25A	40A	23	21	14	13
200A	216	1000	330	25A	25A	40A	27	24	18	16
250A	267	1015	400	25A	25A	50A	42	38	31	28
300A	318	1152	445	25A	25A	50A	61	55	44	40
350A	355	1015	490	32A	32A	50A	76	68	55	50
400A	406	1120	560	32A	32A	50A	100	90	73	66
450A	457	1354	620	32A	40A	50A	130	117	96	86
500A	508	1315	675	32A	40A	50A	163	147	121	109
550A	559	1432	745	40A	50A	65A	199	179	151	136
600A	610	1503	795	50A	65A	80A	253	228	187	168
700A	711	1604	905	65A	65A	80A	341	307	253	228
800A	812	1780	1020	80A	100A	150A	433	390	303	273
