Environment Division
Other Centrifuge
Specifications
Easy to operate.                Compact & Simple.
Save energy & space.      Low noise.
No need any consumptions.
Absolutely good for the environment!
Application
Oil purification and chip separation of several machine tools.

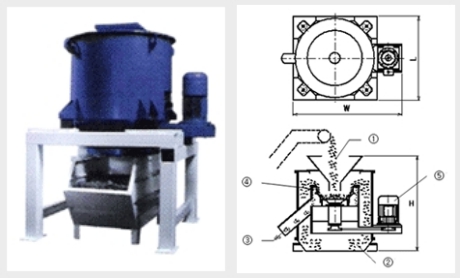

Structure
① = Inlet    ② = De-oiled Chips    ③ = Oil Outlet
④ = Screen    ⑤ = Motor
· Format and Specification
Model Capacity(ℓ/min) Drum size(mm) Number of revolutions(rpm) Motor(Kw) Dimensions (mm) Weight(kg)
FCC-300 0.1 ~0.3 280 2200 1.5 700X900X500 300
FCC-500 0.3 ~0.8 430 1700 3.7 1000X1300X1100 700
